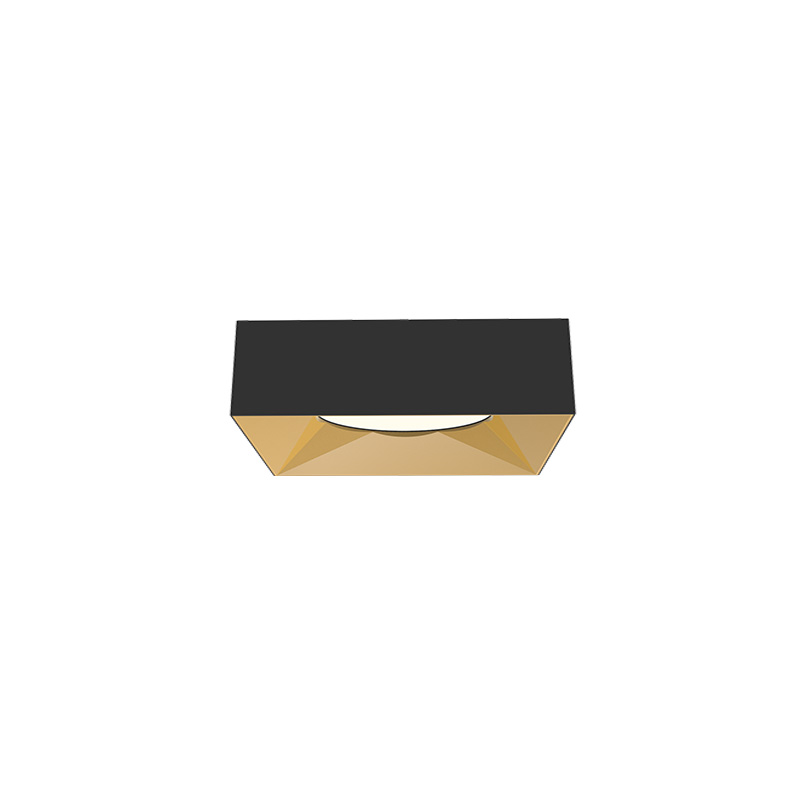

6 Inch Square Ultimate Flush Mounted Fixture
ITEM No.: BL6-SFM4-SA
Size :6 Inch
Wattages : 15W
Downlight Shape : Round/ Square
Mounting : Flush Mounted/Recessed Mounted/Pendant
Dimming : Dimmable
Emergency System : Emergency Battery Backup optional
Material : Die-cast aluminum
Description
The Shade Aim redefines what’s possible for a surface mount downlight. Packed with technical breakthroughs. In addition, it’s more versatile because it can fit more applications, even those with limited plenum space. The Shade Aim delivers the pure, smooth illumination that transforms spaces while disappearing into them and meets the requirements of your most demanding environment. It’s extraordinarily efficient, and easy to install and maintain.
Specification
SPECIFICATION | |||||
Applications | Surface-mount Downlight, Pendant | ||||
Size | 6” | ||||
Wattage | 15W | ||||
Color Temperature (K) | 2700K, 3000K, 3500K , 4000K, 5000K, 6000K, 3CCT, 5CCT, Warm Dim, Tunable White |
||||
Lumens (lm) | Up to 1500lm | ||||
Lumens per Watt | Up to 100lm/W | ||||
Beam Angle | 100° | ||||
CRI | 90+ CRI, < 3-step SDCM | ||||
Driver Input | 120V AC, 120V-277V 50/60 Hz | ||||
Dimming | TRIAC / ELV or 0-10V | ||||
Approved Location | Insulated Ceiling, Damp Locations | ||||
Air Tight | Yes | ||||
Shape | Round and Square | ||||
Finish | White,Black,Satin Nickel | ||||
Projected Life | 70% Light Output at 50,000 Hours | ||||
Certification | cETLus, | ||||
Warranty | 5 Year |
FEATURES & BENEFITS
EYE-CARING&ECO-FRIENDLY:Flame retardant Material, safe, green, durable, no mercury, and hazardous substance contained,our ceiling light by adopting a milk white housing and qualified LEDs,
giving off uniform and bright light without flickering, keeping your eyes free from harsh and glare lights. CCT: 3CCT selection,3000K, 4000K and 5000K 5CCT selection, 2700K, 3000K, 3500K, 4000K, 5000K convenient inventory and cost savings. WIDE APPLICATION: Great for Stairwell, Stores,Shop,Office,Home,Living Room, Bathroom, Laundry room,Garage,Utility room, Hallway, Basement.
EASY TO INSTALL: Our ceiling light fixture can be mounted on the ceiling directly, no need drilling a big hole for installation, fits for 150-161 sq.ft space. MOUNTING: 3 mounting option for 4” and 6” POE compatible: Integrates with Power over Ethernet lighting systems via standard, low-voltage wires.
BODY
Durable airtight aluminum body with Anodized aluminum with satin finishing. Black and white color options with elegant design. Available in a variety of color/fi nish combinations.
LED DRIVER
Built-in on board driver with 120V AC, 120-277V AC input, 50/60 Hz,triac dimming and 0-10V dimming, constant voltage and constant current mode. The power has UL listed, can be applied to a variety of applications. Quick Connect push-in terminals. “Quick connect” push-in terminals for fast and easy wiring.
DIMMING
100%-10% dimming capability. The compatible with industry standard forward/reverse phase dimmers, TRIAC / ELV dimmers and 0-10V Dimmers.
LED LIGHT SOURCE
Optional branded COB LED chips
10W,15W,18W,20W,24W,30W
1000 1500 1800 2000 2400 3000 Lumens
2700K, 3000K, 3500K, 4000K and 5000K at 90+ CRI
Dimmable options: Tunable White/ Dim to Wram
LED mounted to die-cast / extruded aluminum heat sink w/active cooling
50,000 hours average rated life at 70% output
BEAM SPREAD
The fixture lens provides 100° .
MOUNTING
4” and 6” can be mounted to an industry standard 3.5″/4″ octagon box (JBox / standard slab box) with minimum depth of 1.5″ (40mm) via mounting holes or a compatible 4” and 6″ recessed can via retrofit kit (sold separately).
ENVIRONMENT
Suitable for Damp locations.
Fire-rated when used in a fire-rated octagon box
Indoor/Outdoor rated.
COMPATIBLE RECESSED HOUSINGS
AX-LIA series
Prisa series
LISTING & WARRANTY
ETL listed to US and Canada standards for wet locations.
5-year limited warranty.
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | Shade Aim BL6-FM4-SAP | liteharbor | 1 MB | 282 |
2 | Shade Aim BL4-FM4-SA | liteharbor | 1 MB | 240 |
3 | Shade Aim BL4-FM4-SAP | liteharbor | 1 MB | 329 |
4 | Shade Aim BL6-FM4-SA | liteharbor | 1 MB | 273 |
