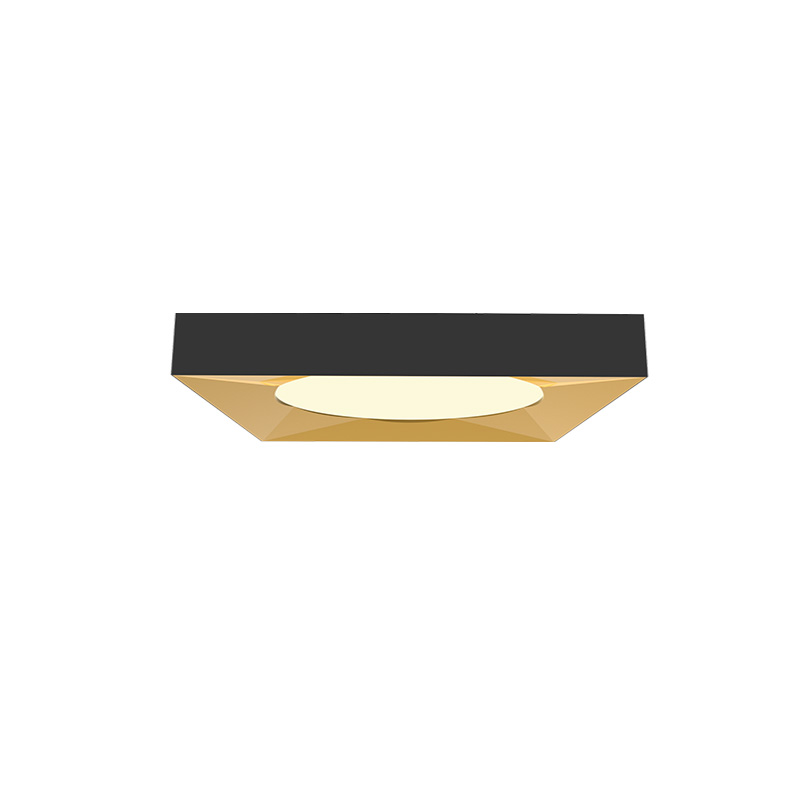

9 Inch Square Ultimate Flush Mounted Fixture

Description

The Shade Aim redefines what’s possible for a surface mount downlight. Packed with technical breakthroughs. In addition, it’s more versatile because it can fit more applications, even those with limited plenum space. The Shade Aim delivers the pure, smooth illumination that transforms spaces while disappearing into them and meets the requirements of your most demanding environment. It’s extraordinarily efficient, and easy to install and maintain.

Specification

        SPECIFICATION
Applications Surface-mount Downlight, Pendant
Size 9”
Wattage 18W
Color Temperature (K) 2700K, 3000K, 3500K ,
4000K, 5000K, 6000K,
3CCT, 5CCT, Warm Dim,
Tunable White
Lumens (lm) Up to 1800lm
Lumens per Watt Up to 100lm/W
Beam Angle 100°
CRI 90+ CRI, < 3-step SDCM
Driver Input 120V AC, 120V-277V  50/60 Hz
Dimming TRIAC / ELV or 0-10V
Approved Location Insulated Ceiling, Damp Locations
Air Tight Yes
Shape Round and Square
Finish White,Black,Satin Nickel
Projected Life 70% Light Output at 50,000 Hours
Certification cETLus,
Warranty 5 Year



FEATURES & BENEFITS

EYE-CARING&ECO-FRIENDLY:Flame retardant Material, safe, green, durable, no mercury, and hazardous substance contained,our ceiling light by adopting a milk white housing and qualified LEDs,

giving off uniform and bright light without flickering, keeping your eyes free from harsh and glare lights. CCT: 3CCT selection,3000K, 4000K and 5000K 5CCT selection, 2700K, 3000K, 3500K, 4000K, 5000K convenient inventory and cost savings. WIDE APPLICATION: Great for Stairwell, Stores,Shop,Office,Home,Living Room, Bathroom, Laundry room,Garage,Utility room, Hallway, Basement.

EASY TO INSTALL: Our ceiling light fixture can be mounted on the ceiling directly, no need drilling a big hole for installation, fits for 150-161 sq.ft space. MOUNTING: 3 mounting option for 4” and 6” POE compatible: Integrates with Power over Ethernet lighting systems via standard, low-voltage wires.

BODY

Durable airtight aluminum body with Anodized aluminum with satin finishing. Black and white color options with elegant design. Available in a variety of color/fi nish combinations.

LED DRIVER

Built-in on board driver with 120V AC, 120-277V AC input, 50/60 Hz,triac dimming and 0-10V dimming, constant voltage and constant current mode. The power has UL listed, can be applied to a variety of applications. Quick Connect push-in terminals. “Quick connect” push-in terminals for fast and easy wiring.

DIMMING

100%-10% dimming capability. The compatible with industry standard forward/reverse phase dimmers, TRIAC / ELV dimmers and 0-10V Dimmers.

LED LIGHT SOURCE

Optional branded COB LED chips

10W,15W,18W,20W,24W,30W

1000 1500 1800 2000 2400 3000 Lumens

2700K, 3000K, 3500K, 4000K and 5000K at 90+ CRI

Dimmable options: Tunable White/ Dim to Wram

LED mounted to die-cast / extruded aluminum heat sink w/active cooling

50,000 hours average rated life at 70% output

BEAM SPREAD

The fixture lens provides 100° .

MOUNTING

4” and 6” can be mounted to an industry standard 3.5″/4″ octagon box (JBox / standard slab box) with minimum depth of 1.5″ (40mm) via mounting holes or a compatible 4” and 6″ recessed can via retrofit kit (sold separately).

ENVIRONMENT

Suitable for Damp locations.

Fire-rated when used in a fire-rated octagon box

Indoor/Outdoor rated.

COMPATIBLE RECESSED HOUSINGS

AX-LIA series

Prisa series

LISTING & WARRANTY

ETL listed to US and Canada standards for wet locations.

5-year limited warranty.

Product File Download

# File Added by File size Downloads
1 pdf Shade Aim BL6-FM4-SAP liteharbor 1 MB 156
2 pdf Shade Aim BL4-FM4-SA liteharbor 1 MB 135
3 pdf Shade Aim BL4-FM4-SAP liteharbor 1 MB 165
4 pdf Shade Aim BL6-FM4-SA liteharbor 1 MB 152
